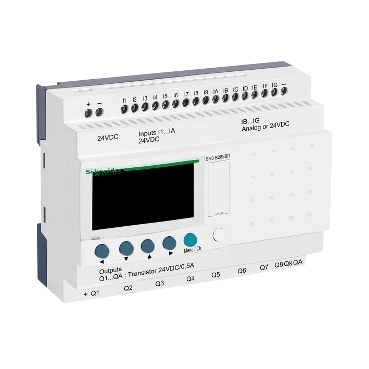

Smart Relay, Zelio Logic SR3, 26 IO, 24V DC, cLock, Display, 10 trAnsistor Outputs.
Specifications | SR3B262BD |
| Range of product | Zelio Logic |
| Product or component type | Modular smart relay |
| Local display | With |
| Number or control scheme lines | 0…500 with FBD programming
0…240 with ladder programming |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 19.2…30 V |
| Discrete input number | 16 conforming to IEC 61131-2 Type 1 |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Analogue input number | 6 |
| Number of outputs | 10 transistor |
| Analogue input range | 0...24 V
0...10 V |
| Analogue input resolution | 8 bits |
| Output voltage limits | 19.2...30 V DC (transistor output) |
| Output voltage | 24 V transistor output |
| Load current | 0.5…0.625 A transistor output |
| Clock | With |
| Net weight | 0.3 kg |
