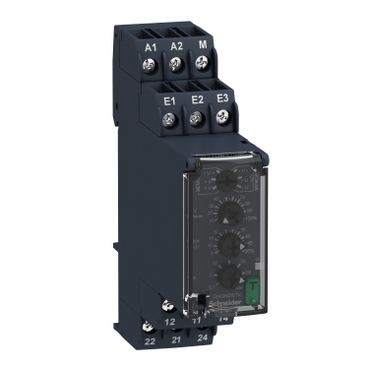

Modular 1-phase voltage control relay, 8 A, 2 CO, 0.05…5 V AC/DC, 24…240 V AC/DC.
Specifications | RM22UA31MR |
| Range of product | Harmony Control Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Relay type | Control relay |
| Product or component type | Voltage control relay |
| Network number of phases | 1 phase |
| Supply circuit type | DC |
| Relay name | RM22UA |
| Relay monitored parameters | Undervoltage and overvoltage in window mode
Overvoltage or undervoltage detection |
| Time delay | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon faul |
| Measurement range | 0.05...5 V AC/DC |
| Contacts type and composition | 2 C/O |
| Supply voltage limits | 20.4…264 V AC/DC |
| Output contacts | 2 C/O |
| Nominal output current | 8 A |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Control type | With test button |
| Width | 22.5 mm |
| Net weight | 0.11 kg |
