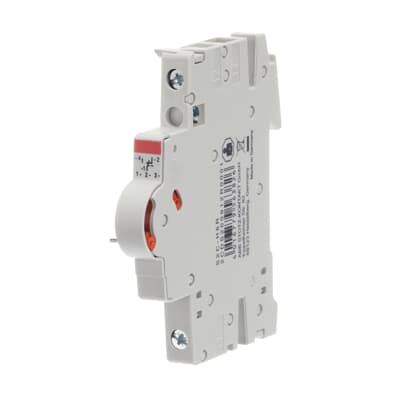

Auxiliary Contact for MCB, RCCB, RCBO (S2C-H6R).
Specifications | 2CDS200912R0001 |
| Extended Product Type | S2C-H6R |
| Country of Origin (Estimated) | Germany (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Catalog Description | S2C-H6R Auxiliary Contact |
| Long Description | Indication of the position of the device’s contacts. Suitable for MCBs S 200 series, SN201 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 series. To be mounted on the right side of the MCBs |
| Function | Auxiliary Contact |
| Suitable For | S200, S200M, S200P, S200S, S300P, SN201L+SN201-IH, SN201+SN201-IH,
SN201M+SN201-IH, F200, DS201, DS202C, DS200, S-ARC1,DS-ARC1 |
Suitable for Product
Class | Miniature Circuit Breaker
Residual Current Device |
Number of Auxiliary
Contacts CO (SPDT) | 1 |
| Mounting Position | right |
Dimensions (mm)
(H x W x D) | 85x8.8x69 mm |
| Net Weight | 0.043 kg |
