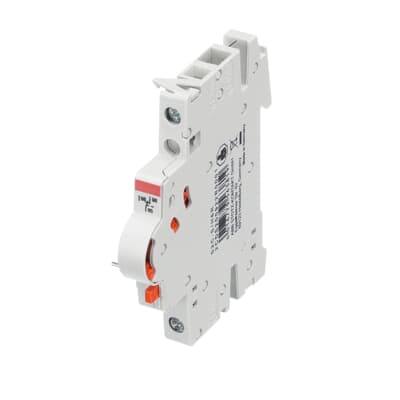

Auxiliary Contact Signal for MCB, RCCB, RCBO (S2C-S/H6R).
Specifications | 2CDS200922R0001 |
| Extended Product Type | S2C-S/H6R |
| Country of Origin (Estimated) | Germany (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Catalog Description | S2C-S/H6R Signal / Auxiliary Contact |
| Long Description | Choice through a selector between indication of the position of the device’s contacts and signalling of a fault (overcurrent/short-circuit for MCBs and RCBOs, earth fault for RCCBs and RCBOs). Suitable for MCBs S 200 series, SN 201 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 series. |
| Function | Signal / Auxiliary Contact |
| Suitable For | S200, S200M, S200P, S200S, S300P, SN201L+SN201-IH, SN201+SN201-IH,
SN201M+SN201-IH, F200, DS201, DS202C, DS200, S-ARC1,DS-ARC1 |
Suitable for Product
Class | Miniature Circuit Breaker
Residual Current Device |
Number of Auxiliary 1
Contacts CO (SPDT) | 1 |
| Mounting Position | right |
Dimensions (mm)
(H x W x D) | 85x8.8x69 mm |
| Net Weight | 0.043 kg |
