Specifications | 81190 |
| Range of product | Mureva Socket |
| Country of Origin (Estimated) | Italy |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

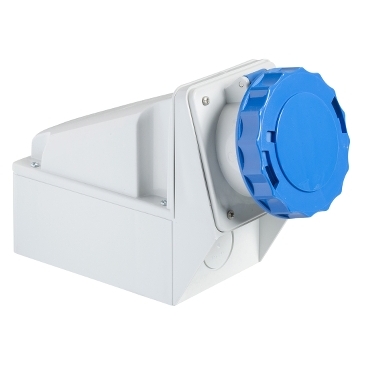

| Product or component type | Wall-mounted socket (Ổ cắm nổi) |
| Plug, socket category | Low voltage |
| Poles description | 2P + E (3 Chân) |
| Network type | AC (Lưới điện xoay chiều) |
| Outlet standard | Industrial (Dùng trong điện Công Nghiệp) |
| Mounting mode | Panel-mounted |
| Plug, socket, control station shape | Angled (ổ nghiêng) |
| [In] rated current | 125 A |
| [Ue] rated operational voltage | 200...250 V (Dùng cho điện áp 1 pha) |
| Network frequency | 50/60 Hz |
| IP degree of protection | IP67 (Kín Nước) |
| Standards | IEC 60309-2
IEC 60309-1 |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel
Sleeves: nickel plated brass
Springs: stainless steel |
| Connections - terminals | Captive screws |
| Cable cross section | 16…70 mm² |
| Cable entry | Cable gland |
| Thread type | Pg 48 |
| Base dimension | 114 x 224 mm |
| Dimensions (WxHxD) | 114 x 340 x 213 mm |
| Net weight | 1.774 kg |
