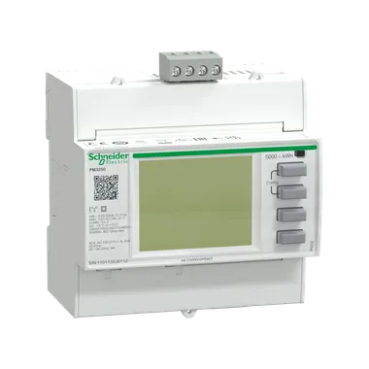

Specifications - METSEPM3250 |
| Range of product | PowerLogic PM3000 |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM3250 |
| Product or component type | Power meter |
| Power quality analysis | up to the 15th harmonic |
| Device application | Multi-tariff
Power monitoring
Sub billing |
| Type of measurement | Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency
Total current harmonic distortion THD (I)
Total voltage harmonic distortion THD (U) |
| Supply voltage | 100...277 V AC 45...65 Hz
173...480 V AC 45...65 Hz
100...300 V DC |
| [In] rated current | 5 A
1 A |
| Type of network | 3P + N
1P + N
3P |
| Display type | Backlit LCD |
| Display resolution | 128 x 96 pixels |
| Measurement current | 0.02…1.2 A
0.05…6 A |
| Analogue input type | Current 0...5 A
Current 0...1 A |
| Measurement voltage | 50…330 V AC 45...65 Hz direct
50…330 V AC 45...65 Hz phase to neutral
80…570 V AC 45...65 Hz direct
80…570 V AC 45...65 Hz phase to phase
570…999000 V AC 45...65 Hz with external VT |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22
Class 1 active energy conforming to IEC 62053-21
Class 2 reactive energy conforming to IEC 62053-23
Class C active energy conforming to EN 50470-3 |
| Number of inputs | 0 |
| Number of outputs | 0 |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus at 9.6...38.4 kbauds |
| Communication port support | RS485 |
| Data recording | Time stamping
Min/max of instantaneous values
5 alarms |
Dimensions (mm)
(H x W x D) | 95x90x70mm |
| Net weight | 0.26 Kg |
