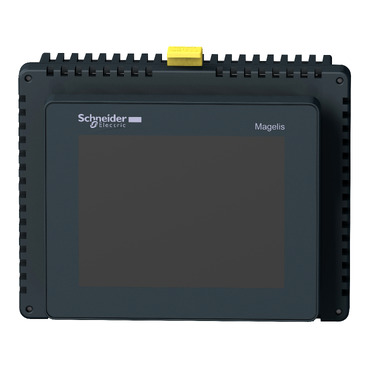

Touch panel screen STU 3''5 Color.
Specifications | HMISTU655 |
| Range of product | Harmony STO & STU |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Touch panel screen |
| Software designation | Vijeo Designer |
| Operating system | Harmony |
| Processor name | CPU ARM9 |
| Display size | 3.5 inch |
| Display type | QVGA TFT colour touchscreen |
| Display colour | 65536 colours |
| Display resolution | 320 x 240 pixels QVGA |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 16 levels |
| Character font | Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII
Korean
Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 30 A |
| power consumption in W | 6.5 W |
| number of pages | Limited by internal memory capacity |
| Processor frequency | 333 MHz |
| Memory description | Application memory 16 MB
Back up of data 64 kB |
| Integrated connection type | 1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply - removable screw terminal block
1 Ethernet - RJ45 |
| Realtime clock | Access to the PLC real-time clock |
| downloadable protocols | Modbus TCP/IP
Modbus
Uni-TE
Third party protocols |
| Fixing mode | Ø 22 mm hole |
| Enclosure material | PC/PBT |
| marking | With Schneider logo, CE |
| Dimensions (HxWxD) | 98.15x118x55.3 mm |
