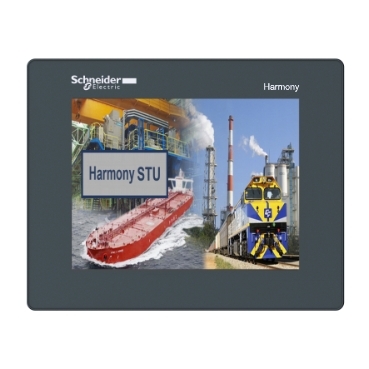

7 inch wide screen, Universal model, 2 serial ports,1 Ethernet port, embeddedRTC
Specifications | HMIGXU3512 |
| Range of product | Harmony Easy GXU |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Advanced touchscreen panel |
| Display type | LCD touch screen |
| Display colour | 65536 colours |
| Display resolution | 800 x 480 pixels WVGA |
| Display size | 7 inch |
| Backlight lifespan | 20000 hours |
| [Us] rated supply voltage | 24 V DC |
| Software designation | Vijeo Designer Basic configuration software |
| Memory description | Internal, 48 MB for application
Internal DDR, 128 MB
Internal, 128 kB for backup |
| Integrated connection type | USB type mini B
COM1 serial link: 9-way male SUB-D connector, RS232C
COM2 serial link: 9-way male SUB-D connector, RS422/RS485
USB type A
Ethernet 10/100BASE-TX |
| IP degree of protection | IP65 (front panel) |
| Cut-out dimensions | 190 x 135 mm |
