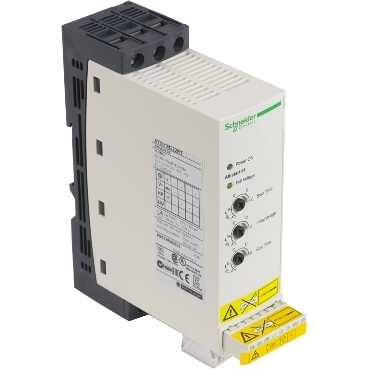

Soft starter for asynchronous motor, Altistart 01, ATS01, 22A, 460 to 480V.
Specifications: ATS01N222RT |
| Range | Altistart 01 |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS01 |
| Product specific application | Simple machine |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| [Us] rated supply voltage | 460...480 V - 10...10 % |
| Supply voltage limits | 414…528 V |
| Motor power hp | 10 Hp, 3 phases at 460...480 V
15 Hp, 3 phases at 460...480 V |
| IcL starter rating | 22A |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| IP degree of protection | IP20 |
Dimensions (mm)
(H x W x D) | 154x45x131 mm |
| Net weight (Kg) | 0.56 Kg |
