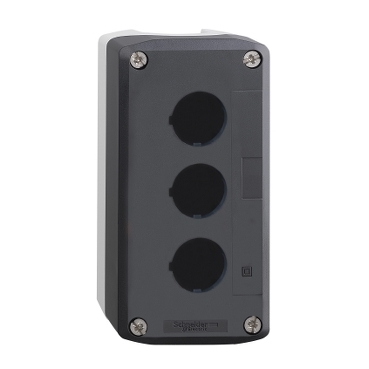

Specifications | XALD03 |
| Range of product | Harmony XALD |
| Country of Origin (Estimated) | Czech Republic (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Empty control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units (Dùng Gắn dòng Đèn báo nút nhấn XB5) |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Cable entry | 2 knock-outs for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529
IP67
IP69
IP69K |
| Assembly style | For customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 3 |
| Mounting of block | Front mounting
Rear mounting |
| Main group | 3 cut-outs |
| Standards | IEC 60947-1
CSA C22.2 No 14
UL 508
IEC 60947-5-5
IEC 60947-5-1
IEC 60947-5-4
JIS C8201-5-1
JIS C8201-1 |
| Net weight | 0.238 kg |
