Specifications | XALK01 |
| Range of product | Harmony XALD |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

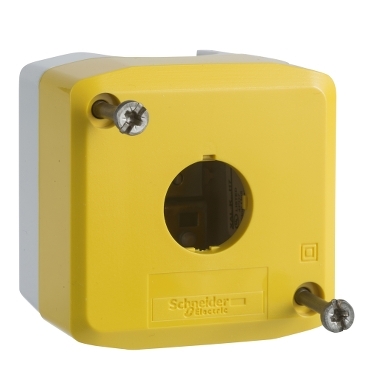

| Product or component type | Empty control station |
| Device short name | XALD |
| Control station application | Emergency stop function
Emergency switching off function |
| Product destination | For XB5 Ø 22 mm control and signalling units (Dùng Gắn dòng Đèn báo nút nhấn XB5) |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Cable entry | 1 knock-out for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529
IP67
IP69
IP69K |
| Assembly style | For customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 1 |
| Mounting of block | Front mounting
Rear mounting |
| Main group | 1 cut-out |
| Group of product | Standard yellow |
| Standards | IEC 60947-5-5
UL 508
IEC 60947-5-4
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-1
IEC 60947-5-1
JIS C8201-1 |
| Net weight | 0.136 kg |
