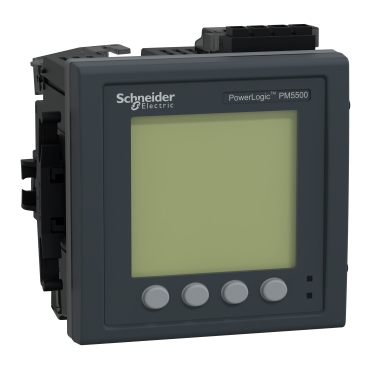

Power Meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms.
| Specifications - METSEPM5560 |
| Range of product | PowerLogic PM5000 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM5560 |
| Product or component type | Power meter |
| Power quality analysis | Up to the 63rd harmonic |
| Device application | Gateway
WAGES metering
Power monitoring
Multi-tariff |
| Metering type | Measured neutral current
Calculated ground current |
| Type of measurement | Current
Voltage
Frequency
Power factor
Energy
Active and reactive power |
| Supply voltage | 100...300 V DC
90...528 V AC 45...65 Hz |
| [In] rated current | 5 A
1 A |
| Type of network | 3P + N
1P + N
3P |
| Display type | Backlit LCD |
| Display resolution | 128 x 128 pixels |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm)
Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 20…400 V AC 45...65 Hz between phase and neutral
20…828 V AC 45...65 Hz between phases |
| Accuracy class | Class 0.2S active energy conforming to IEC 62053-22 |
| Number of inputs | 4 digital |
| Number of outputs | 2 digital |
| Information displayed | Tariff (8) |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
JBUS
Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
Ethernet Modbus TCP/IP daisy chain
BACnet IP
DNP3 over ethernet |
| Communication port support | RS485
ETHERNET |
| Communication gateway | Ethernet/serial |
| Data recording | Event logs
Maintenance logs
Min/max of instantaneous values
Data logs
Alarm logs
Time stamping |
| Memory capacity | 1.1 MB |
| Connections - terminals | Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
RS485 link: screw terminal block4
Digital input: screw terminal block8
Digital output: screw terminal block4
Ethernet network: RJ45 connector2 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x44mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 450 g |
