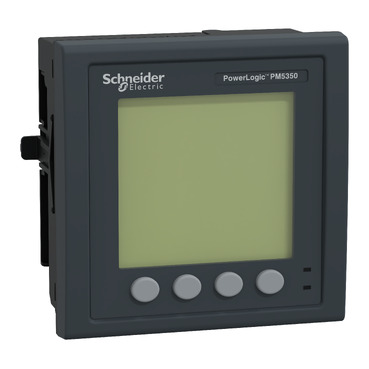

Power and Energy Meter PowerLogic PM5350 with THD, alarming.
| Specifications METSEPM5350 |
| Range of product | PowerLogic PM5350 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM5350 |
| Product or component type | Power meter |
| Power quality analysis | Total demand distortion
total harmonic distortion |
| Device application | Power monitoring |
| Type of measurement | Current
Voltage
Frequency
Power factor
Energy
Phase angle
Apparent power
Active power
Reactive power |
| Supply voltage | 85...265 V AC 45...65 Hz
100...300 V DC |
| [In] rated current | 5 A
1 A |
| Type of network | 3P + N
1P + N
3P |
| Display type | Monochrome graphic LCD |
| Display resolution | 6 lines |
| Measurement current | 5…9000 mA |
| Analogue input type | Current 0.05...9 A (impedance <= 0.3 mOhm)
Voltage (impedance 10 MOhm) |
| Measurement voltage | 35…480 V AC 45...65 Hz phase to phase
20…277 V AC phase to neutral |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22
Class 0.5 active energy conforming to IEC 61557-12
Class 2 reactive energy conforming to IEC 62053-23
Class 2 reactive energy conforming to IEC 61557-12
Class 0.5 power conforming to IEC 61557-12 |
| Number of inputs | 4 digital |
| Number of outputs | 2 relay |
| Information displayed | Tariff (4) |
| Communication port protocol | JBUS
Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds |
| Communication port support | Terminal block: RS485 |
| Data recording | Min/max of instantaneous values
Alarms |
| Memory capacity | - |
| Connections - terminals | Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
Input/output circuit: screw terminal block6
RS485 link: screw terminal block4 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x44mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 250 g |
