Specifications | XVC4B3 |
| Range of product | Harmony XVC4 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Component name | XVC |

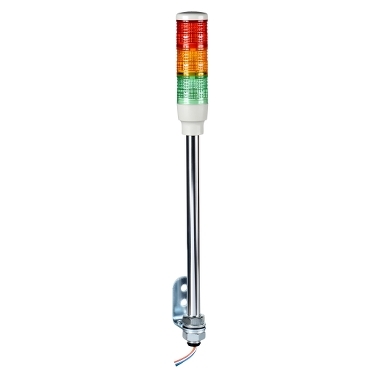

| Product or component type | Complete pre-wired monolithic tower light |
| Beacon or indicator bank unit type | 3 illuminated units |
| Material | Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94HB): top cover
SGP (chromium-plated): support tube |
| Sound signalling | Without |
| Mounting diameter | 40 mm |
| Light source | LED steady red
LED steady orange
LED steady green |
| Supply circuit type | AC/DC |
| Mounting location | On support tube, 17 mm |
| Product mounting | On support tube, 17 mm |
| [Us] rated supply voltage | 24 V |
| Cable cross section | 0.33 mm² |
| Cable length | 600 mm |
| Current consumption | 75 mA |
| Standards | EN/IEC 61000-6-3
EN/IEC 61000-6-2 |
| IP degree of protection | IP23 vertical surface installation conforming to EN/IEC 60529 |
| Net weight | 0.54 kg |
| Height | 473.5 mm |
