Specifications | XB7NS8445 |
| Range of product | Harmony XB7 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

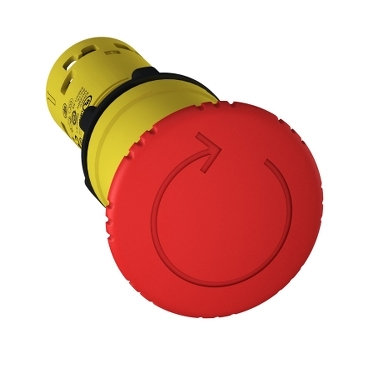

| Product or component type | Emergency stop push-button |
| Device short name | XB7 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529 |
| Mounting diameter | 22 mm |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Type of operator | mechanical latching |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Contacts type and composition | 1 NO + 1 NC |
| Device presentation | Monolithic product |
| Contact operation | Snap action |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 100000 cycles |
| Standards | IEC 60947-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-5-5
IEC 60364-5-53
IEC 60204-1
ISO 13850 |
| Dimensions (HxWxD) | 40x40x72 mm |
| Net weight | 0.035 kg |
