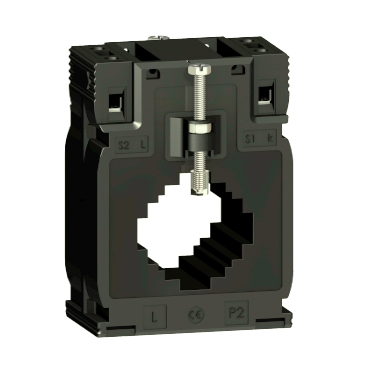

Current Transformer Tropicalised DIN Mount 400 5 for bars 10x40 20x32 25x25.
Specifications | METSECT5MC040 |
| Range | PowerLogic |
| Country of Origin (Estimated) | Tunisia |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 8 VA
Class 1 at 10 VA |
| [In] rated current | 400 A |
| Current transformer type | Tropicalised for busbar and cable |
| Current transformer ratio | 400/5 A |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Insulated locking screw
Clip-on
By screws |
| Mounting support | Mounting plate
DIN rail
Busbar |
| Electrical insulation class | Class B |
| Sealing | Without |
| Standards | IEC 61869-2
VDE 0414 |
| Width | Outside: 70 mm
Inner: 41 mm |
| Height | Outside: 95 mm
Inner: 41 mm |
| Depth | Frame : 45 mm
Total : 65 mm |
| Diameter | 32 mm |
| Cable outer diameter | 32 mm |
| Opening of bars | 25.5 x 25.5
40.5 x 10.5
32.5 x 20.5 |
| Product weight | 0.404 kg |
