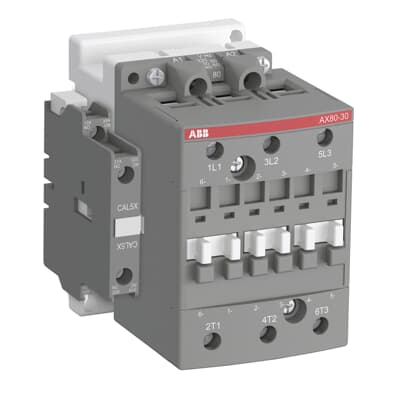

Contactor 3-phase 80A Auxiliary Contacts 1NO+1NC Control Circuit Voltage 110VAC (AX80-30-11-84).
Specifications | 1SBL411074R8411 |
| Range | Contactor AX |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AX80-30-11-84 |
| Device application | Power switching
Motor control |
| Poles description | 3P |
| Number of Auxiliary Contacts | 1NO+1NC |
| Rated Operational Voltage | Auxiliary Circuit 690 V
Main Circuit 690 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 125 A |
| Rated Operational Current AC-1 (Ie) | (220 / 240 V) 55 °C 105 A
(690 V) 40 °C 125 A
(690 V) 70 °C 85 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 80 A
(440 V) 55 °C 70 A
(500 V) 55 °C 65 A
(690 V) 55 °C 46 A
(380 / 400 V) 55 °C 80 A
(220 / 230 / 240 V) 55 °C 80 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 40 kW
(440 V) 40 kW
(500 V) 45 kW
(690 V) 40 kW
(380 / 400 V) 37 kW
(220 / 230 / 240 V) 22 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 110 V
60 Hz 110 ... 120 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
Dimensions (mm)
(HxWxD) | 108x82x110 mm |
| Net weight (Kg) | 1.05 kg |
