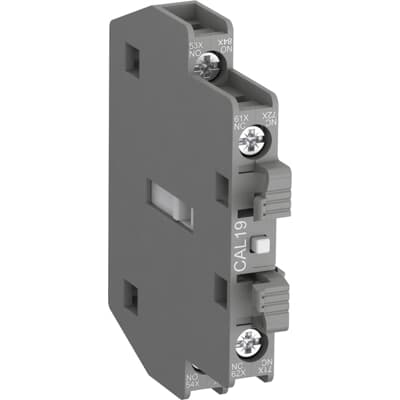

Side-mounted instantaneous auxiliary contact blocks Suitable For AX260 ... AX370 (CAL19-11).
Specifications | 1SFN010820R3311 |
| Range | Auxiliary contact blocks |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | CAL19-11B |
| Description | CAL19-11B Auxiliary Contact Block |
| Application | Side-mounted instantaneous auxiliary contact blocks |
| Number of Auxiliary Contacts | 1NO+1NC |
| Rated Operational Voltage | Auxiliary Circuit 24 ... 690 V |
| Terminal Type | Screw Terminals |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Suitable For Contactor | AX260 ... AX370, AF116 ... AF370. |
Dimensions (mm)
(HxWxD) | 67.3 x 79 x 14.9mm |
| Net weight (Kg) | 0.04 kg |
