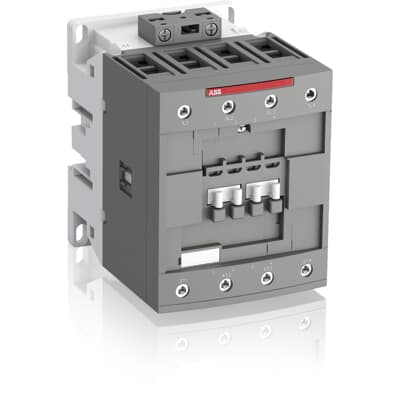

Contactor 3-phase 80A Control Circuit Voltage 250-500VAC/DC (AF80-30-00-14)
Specifications | 1SBL397001R1400 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF80-30-00-14 |
| Device application | Power switching
Motor control |
| Number of Main Contacts NO | 3P |
| Number of Auxiliary Contacts | 0 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 130 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 125 A
(690 V) 60 °C 100 A
(690 V) 70 °C 85 A |
| Rated Operational Current AC-3 | (415 V) 60 °C 80 A
(440 V) 60 °C 80 A
(500 V) 60 °C 65 A
(690 V) 60 °C 49 A
(1000 V) 60 °C 25 A
(380 / 400 V) 60 °C 80 A
(220 / 230 / 240 V) 60 °C 80 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 37 kW
(415 V) 45 kW
(440 V) 45 kW
(500 V) 45 kW
(690 V) 45 kW
(1000 V) 35 kW
(380 / 400 V) 37 kW
(220 / 230 / 240 V) 22 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V
acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 250 ... 500 V
60 Hz 250 ... 500 V
DC Operation 250 ... 500 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Screw Terminal Type | Screw Terminals |
Dimensions (mm)
(HxWxD) | 125.5 x 70 x 116 mm |
| Net weight (Kg) | 1.17 kg |
