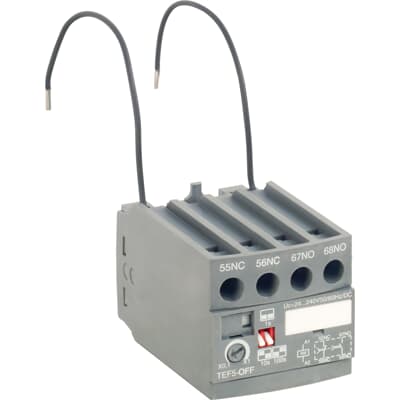

Electronic timers OFF-delay 1-10s 1NO+1NC Suitable For AX09-AX80 (TEF5-OFF).
Specifications | 1SBN020314R1000 |
| Range | Electronic timers (OFF-delay) |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | TEF5-OFF |
| Description | TEF5-OFF Frontal Electronic Timer |
| Number of Auxiliary Contacts | 1NO+1NC |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Terminal Type | Screw Terminals |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Suitable For Contactor | GA75, GAE75, UA16, UA26, UA30, UA50 UA63, UA75 AX06, AX09, AX12,AX18, AX25, AX32, AX40, AX50, AX65, AX80. |
Dimensions (mm)
(HxWxD) | 40.5 x 44 x 62.5mm |
| Net weight (Kg) | 0.065 kg |
