Specifications | 8430SNRD_BZ_G19 |
| Range of product | ZENcelo (Dòng công tắc ổ cắm ZENcelo Vuông) |
| Country of Origin (Estimated) | Vietnam (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

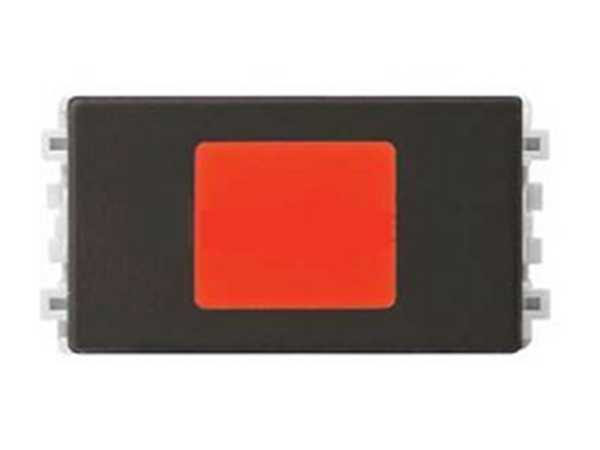

| Product or component type | Message indicator (Hạt đèn báo màu đỏ) |
| Local signalling | Indicator light, LED (red) |
| Size | S |
| Colour tint | Bronze |
| Clamping connection capacity | 1 x 1...4 x 1 mm² for solid stranded cable(s)
1 x 1.5...5 x 1.5 mm² for solid stranded cable(s)
1 x 2.5...3 x 2.5 mm² for solid stranded cable(s)
1 x 4...2 x 4 mm² for solid stranded cable(s) |
| [Ue] rated operational voltage | [Ue] rated operational voltage |
| Material | Brass: metal parts
Polycarbonate: base
Polycarbonate: cover
Polycarbonate: lenses |
| Connections - terminals | Folded terminal |
| Width | 23.2 mm |
| Height | 45.8 mm |
| Depth | 31.7 mm |
