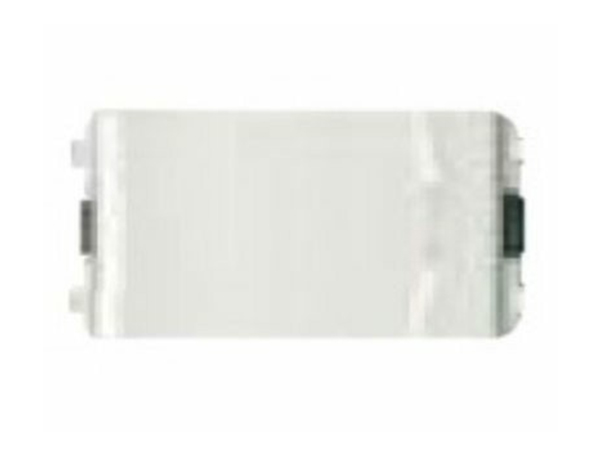

Specifications | 3031_1_2M_F_G19 |
| Range of product | Concept (Dòng công tắc ổ cắm Concept Chữ nhật) |
| Country of Origin (Estimated) | Vietnam (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Switch Module (Hạt Công Tắc size S) |
| Device presentation | Mechanism |
| Device application | Switch |
| Colour tint | White |
| Load type | Inductive: 0...250 W
Resistive |
| Device mounting | Flush (gắm âm) |
| Switch function | 1-way (1 chiều) |
| Number of modules | 1 module S (1 hạt size S) |
| Number of rocker | 100% |
| Actuator | Rocker |
| Range compatibility | Concept (Lắp với mặt nạ dòng Concept) |
| Fixing mode | Clip-in |
| Surface finish | Glossy |
| Surface treatment | Untreated |
| Rated current | 16 AX at 250 V AC 50/60 Hz |
| Electrical durability | 20000 cycles conforming to IEC 60669 |
| Connections - terminals | 2 screw terminals |
| Shape of screw head | Cross slotted |
| Clamping connection capacity | <= 4 mm² for rigid or stranded cable(s) |
| Wire stripping length | 12 mm |
| Local signalling | Locator light (green) (có led xanh) |
| Material | PC: dolly
PC: base
PC: surround |
| Height | 46 mm |
| Width | 23 mm |
| Depth | 33 mm |
| Embedding depth | 25 mm |
