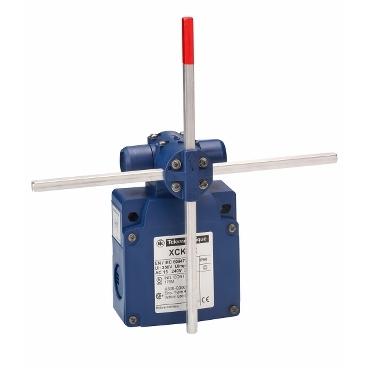

Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(2 NC), slow, M20.
Specifications | XCKVR54D1H29 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Special format |
| Product specific application | For hoisting and mechanical handling applications |
| Product or component type | Limit switch |
| Device short name | XCKMR |
| Sensor design | Compact form E conforming to CENELEC EN 50047 |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | (PBT+PC)-GF30 FR |
| Head material | (PBT+PC)-GF30 FR |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm |
| Number of poles | 4 |
| Contacts type and composition | 2 x (2 NC) |
| Contact operation | Slow-break, staggered |
| Switch actuation | By any moving part |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Number of steps | 5 electrical positions |
| Contact block per direction [control circuit] | 1 per direction |
| Contacts insulation form | Zb |
| Positive opening | With |
| Mechanical durability | 1000000 cycles |
| Depth | 57 mm |
| Height | 200 mm |
| Width | 200 mm |
| Net Weight | 0.32 kg |
