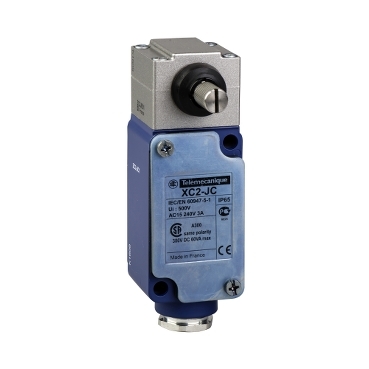

Limit switches XC Standard, XC2J, steel square rod lever, 1 C/O.
Specifications | XC2JC10151 |
| Range of product | OsiSense XC |
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For severe applications |
| Device short name | XC2J |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Movement of operating head | Rotary |
| Type of operator | Square rod lever steel square rod 3 mm, L = 125 mm |
| Switch actuation | By any moving part |
| Type of approach | Lateral approach, 2 directions |
| Number of poles | 1 |
| Contact operation | Snap action |
| Fixing mode | By the body |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Cable entry | 1 entry incorporating cable gland, cable outer diameter: 6…13.5 mm |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Mechanical durability | 30000000 cycles |
| Depth | 65 mm |
| Height | 141 mm |
| Width | 40 mm |
| Net Weight | 0.605 kg |
