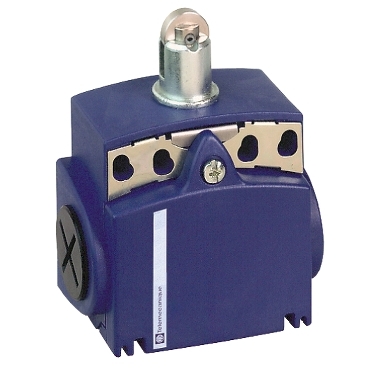

Limit switches XC Standard, XCKT, steel roller plunger, 1NC+1 NO, snap, M16.
Specifications | XCKT2102P16 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKT |
| Sensor design | Compact form C CENELEC EN 50047 |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 2 entries tapped for M16 x 1.5 cable gland 0.2…0.3 in (4…8 mm) |
| Number of poles | 2 |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form | Zb |
| Number of steps | 1 |
| Positive opening | With |
| Mechanical durability | 10000000 cycles |
| Depth | 30 mm |
| Height | 51 mm mm |
| Width | 58 mm |
| Net Weight | 0.105 kg |
