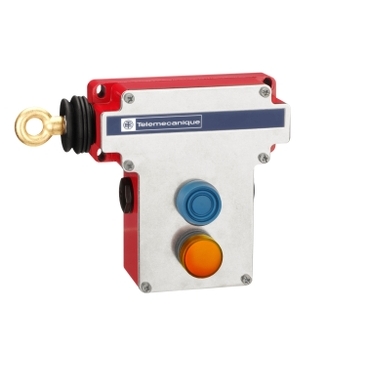

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, LH side, 2NC+2NO, pilot light 130 V.
Specifications | XY2CE2A296 |
| Range of product | Telemecanique Emergency stop rope pull switches XY2C |
| Product or component type | Latching emergency stop rope pull switch |
| Device short name | XY2CE |
| Housing colour | Red RAL 3000 |
| Local signalling | With pilot light, yellow, 24...130 V |
| Number of cables | 1 |
| Trigger cable maximum length | 70 m |
| Body material | Zamak |
| Cover material | Stainless steel |
| Reset | By booted push-button |
| [Us] rated supply voltage | 24...130 V AC/DC |
| Contacts type and composition | 2 NC + 2 NO |
| Contact operation | Slow-break |
| Trigger cable anchor point | LH side |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Tightening torque | 0.8…1.2 N.m |
| Cable entry number | 3 plain hole for Pg 13.5 or ISO M20 cable gland |
| Mechanical durability | 60000 cycles |
| Distance between cable supports | 5 m |
| Terminals description ISO n°1 | (13-14)NO
(21-22)NC |
| Net Weight | 1.47 kg |
