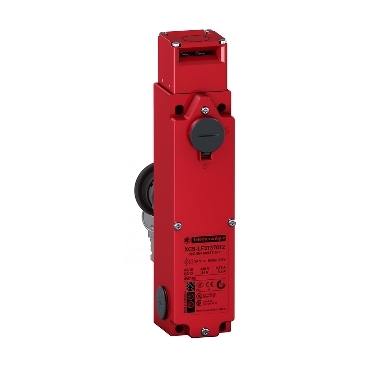

Safety switches XCS, interlock limit 300 VAC 10 as XCSL.
Specifications | XCSL764B2 |
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Safety switch |
| Device short name | XCSL |
| Head type | Key operated turret head |
| Positive opening | With NC contact |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Load factor | 1 |
| Mechanical durability | 1000000 cycles |
| Maximum load current | <= 15 A |
| Protection type | Overvoltage protection for signalling circuit |
| Signalling circuit consumption | 7 mA |
