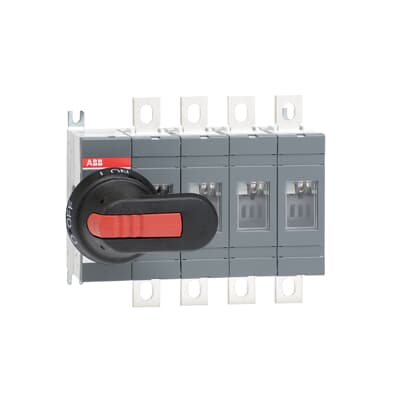

Manual switch-disconnector 4P 200A Including a black ON-OFF plastic pistol Handle and shaft (OT200E04P).
Specifications | 1SCA022713R4930 |
| Extended Product Type | OT200E04P |
| Range | SWITCH-DISCONNECTOR |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OT200E04P SWITCH-DISCONNECTOR |
| Device application | Distribution |
| Number of Poles | 4P |
| [In] rated current | 200A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft included |
| Lock Type | No |
| Mounting Type | Base mounting |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out
Bottom In - Top Out |
| Fourth Pole Position | Right Side |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Mechanical Durability | 0 |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Terminal Width | 20 mm |
| Standards | IEC 60947-3 |
Dimensions (mm)
(H x W x D) | 150 x 180.5 x 82.5mm |
| Net Weight | 1.8 kg |
Sản phẩm thông số kỹ thuật
| Tên thuộc tính | Giá trị thuộc tính |
|---|
| Số Cực | 4P |
| Dòng Điện Định Mức | 200A |
| Cần Thao Tác | Tay Gạt |
