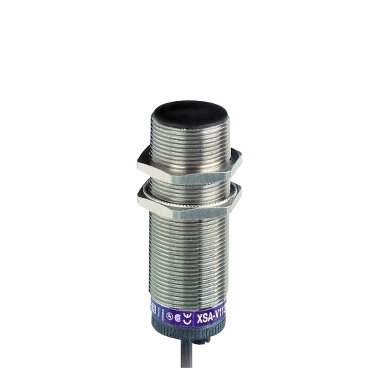

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 24...240VAC/DC, cable 2 m.
Specifications | XSAV11801 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Device application | Rotation monitoring |
| Sensor name | XSA |
| Sensor design | Cylindrical M30 |
| Body type | Fixed |
| Size | 81 mm |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Enclosure material | Nickel plated brass |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 10 mm |
| Discrete output function | 1 NC |
| Output circuit type | AC/DC |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 24...210 V DC
24...240 V AC 50/60 Hz |
| Switching capacity in mA | 5...200 mA DC
5...350 mA AC |
| Thread type | M30 x 1.5 |
| Detection face | Frontal |
| Front material | PPS |
| Sensing range | > 8...15 mm |
| Operating zone | 0…8 mm |
| Cable composition | 2 x 0.34 mm² |
| Status LED | Output state: 1 LED (red) |
| Supply voltage limits | 20…264 V AC/DC |
| Maximum residual current | 1.5 mA open state |
| Threaded length | 67 mm |
| Length | 81 mm |
| Net weight (Kg) | 0.3 kg |
