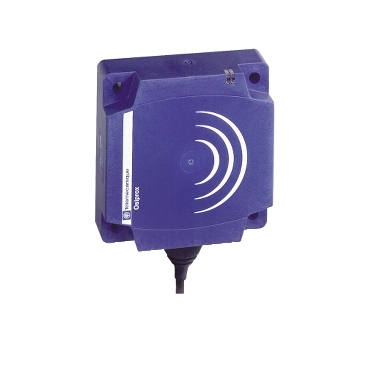

Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12...24 VDC, cable 2 m.
Specifications | XS8D1A1PAL2 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Mobile equipment |
| Sensor name | XS8 |
| Sensor design | Flat form 80 x 80 x 26 |
| Body type | Fixed |
| Size | 26 mm |
| Detector flush mounting acceptance | Non flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 1.6 In (40 mm) flush mountable
2.4 in (60 mm) non flush mountable |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection |
| Switching capacity in mA | <= 200 mA DC overload and short-circuit protection |
| Detection face | Frontal |
| Front material | PBT |
| Operating zone | 0.8…1.6 In (20…40 mm) flush mountable
0.8…2.4 in (20…60 mm) non flush mountable |
| Cable composition | 3 x 0.34 mm² |
| Supply voltage limits | 10…36 V DC |
| Maximum residual current | 1.5 mA open state |
| Height | 40 mm |
| Width | 40 mm |
| Depth | 26 mm |
| Net weight (Kg) | 0.39 kg |
