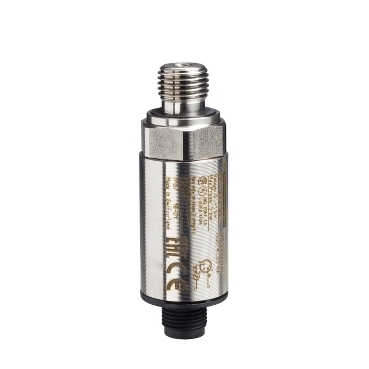

Electronic pressure sensors, Pressure sensors XM, sensor XMLA, 0...16 bar, G 1/4 A (male), 24 V, 4...20 mA.
Specifications | XMLG016D21 |
| Range of product | Telemecanique Pressure sensors XM |
| Pressure sensor type | Electronic pressure sensors |
| Pressure sensor name | XMLG |
| Pressure rating | 16 bar |
| Fluid connection type | G 1/4A (male) conforming to DIN 3852-E |
| Controlled fluid | Air (-15…125 °C)
Corrosive fluid (-15…125 °C)
Hydraulic oil (-15…125 °C)
Fresh water (0…125 °C |
| Type of output signal | Analogue |
| Analogue output function | 4...20 mA, 2 wires |
| Electrical connection | 1 male connector M12, 3 pins |
| [Us] rated supply voltage | 12 V DC (voltage limits: 8…33 V)
24 V DC (voltage limits: 8…33 V) |
| Diameter | 22.8 mm |
| Pressure setting range | 0…16 bar |
| Maximum permissible accidental pressure | 36 bar |
| Destruction pressure | 40 bar |
| Local display | Without |
| Electrical circuit type | Control circuit |
| Current consumption | < 20 mA |
| Materials in contact with fluid | Ceramic
FPM (Viton)
Stainless steel type AISI 303 |
| Protection type | Load short-circuit
Reverse polarity |
| Operating position | Any position |
| Response time on output | < 2 ms |
| Mechanical durability | 10000000 cycles |
| Scale type | Fixed differential |
| Standards | CE
IEC 61326-2-3 |
| Height | 58.1 mm |
| Length | 48.5 mm |
| Net weight (Kg) | 0.095 kg |
