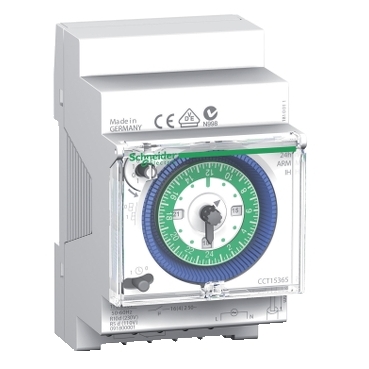

Specifications | CCT15365 |
| Range of product | Mechanical time switch |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Device short name | IH |
| Function available | Manual time changeover |
| Device application | Building |
| Load type | 230 V AC halogen lamp 1000 W
230 V AC incandescent lamp 1100 W
230 V AC fluocompact lamp 600 VA
Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF
Compact fluorescent lampelectronic ballast 25 W
LED lamp < 2 W 20 W
LED lamp > 2 W 180 W |
| Number of channels | 1 |
| Cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| [Ue] rated operational voltage | 110...230 V AC at 50...60 Hz |
| Uimp] rated impulse withstand voltage | 4 kV |
| Battery life | 6 year(s) |
| Connections - terminals | 2x 0.5…2.5 mm² screw terminals solid or flexible
1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| Backup time | 150 h time and program saving 230 V AC
75 h time and program saving 110 V AC |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Mounting support | DIN rail |
| Ambient air temperature for operation | -20…55 °C |
| IP degree of protection | IP20 conforming to EN 60529 |
| Standards | EN 60730-1 |
| Dimensions (WxHxD) | 54x90x66mm |
| Net weight | 0.198 kg |
