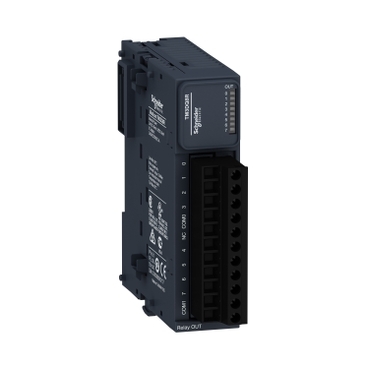

Discrete Output Module, MoDiCon TM3, 8 Relay Outputs, screw, 24V DC.
Specifications | TM3DQ8R |
| Range of product | Modicon TM3 |
| product or component type | Discrete input module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Discrete output type | Relay normally open |
| Discrete output number | 8 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC for relay output
240 V AC |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 8 |
| Current consumption | 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
40 mA at 24 V DC via bus connector (at state on)
30 mA at 5 V DC via bus connector (at state on) |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for relay output |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.11 kg |
