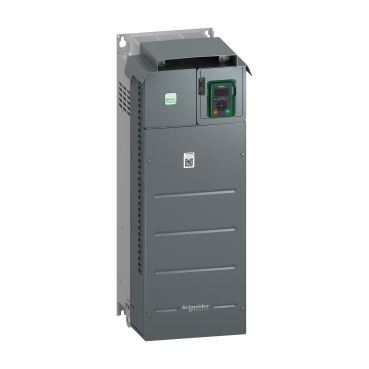

Variable Speed Drive ATV610 - 90 kW/125 HP - 380...415 V - IP20.
Specifications: ATV610D90N4 |
| Range | Easy Altivar 610 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV610 |
| Device application | Fan, pump, compressor, conveyor |
| Product destination | Asynchronous motors
Synchronous motors |
| Mounting mode | Cabinet mount |
| Network number of phases | 3 phase |
| Output voltage | 380...460 V - 15...10 % |
| IP degree of protection | IP20 |
| EMC filter | Integrated conforming to IEC 61800-3 category C3 with 50 m |
| Motor power kW | 90 kW for normal duty
75 kW for heavy duty |
| Motor power HP | 125 hp for normal duty
100 hp for heavy duty |
| Line current | 177.8 A at 380 V (normal duty)
159.9 A at 460 V (normal duty)
155.8 A at 380 V (heavy duty)
138.1 A at 460 V (heavy duty) |
| Communication port protocol | Modbus serial |
| Option card | Slot A: communication card, Profibus DP V1
Slot A: digital or analog I/O extension card
Slot A: relay output card |
| Method of access | Slave |
| Output frequency | 0.1…500 Hz |
| Protection type | Thermal protection: motor
Motor phase break: motor
Thermal protection: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 762mm (922 mm with EMC plate) x 290 x 323mm |
| Net weight (Kg) | 53Kg |
