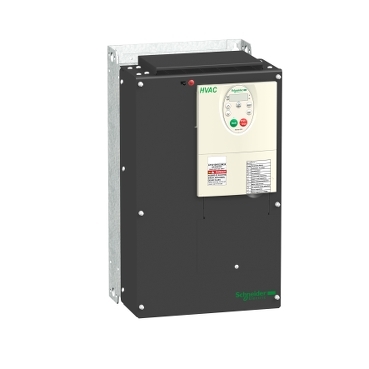

Variable speed drive ATV212 - 22kW - 15hp - 480VAC - 3ph - EMC - IP21
Specifications: ATV212HD22N4 |
| Range | Altivar 212 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV212 |
| Variable speed drive application selection | Building - HVAC compressor for scroll
Building - HVAC fan
Building - HVAC pump |
| Product destination | Asynchronous motors |
| Mounting mode | Cabinet mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 323…528 V |
| IP degree of protection | IP21 |
| EMC filter | Class C2 EMC filter integrated |
| Motor power kW | 22 kW |
| Motor power HP | 30 HP |
| Line current | 33.1 A at 480 V
41.6 A at 380 V |
| Communication port protocol | Modbus
LonWorks
APOGEE FLN
BACnet
METASYS N2 |
| Option card | Communication card LonWorks |
| Method of access | Slave |
| Output frequency | 0.1…500 Hz |
| Protection type | Overheating protection: drive
Thermal power stage: drive
Short-circuit between motor phases: drive
Input phase breaks: drive
Overcurrent between output phases and earth: drive
Overvoltages on the DC bus: drive
Break on the control circuit: drive
Against exceeding limit speed: drive
Line supply overvoltage and undervoltage: drive
Line supply undervoltage: drive
Against input phase loss: drive
Thermal protection: motor
Motor phase break: motor
With PTC probes: motor |
Dimensions (mm)
(H x W x D) | 420x240x214mm |
| Net weight (Kg) | 26.4Kg |
